Brinell Hardness Testers

We are Authorized Dealer of FIE, SAROJ, Manufacturer, Supplier, Distributor, Trader, Exporter, Importer, Maintenance, AMC Services Provider of Brinell Hardness Testers, Manual Brinell Hardness Testers, Computerised Fully Automatic Brinell Hardness Testers, Computerized Brinell Hardness Testers, Optical Brinell Hardness Testers, Digital Computerized Fully Automatic Brinell Hardness Testers and our setup is situated in Pune, Maharashtra, India.

Offering you a complete choice of products which include manual brinell hardness tester, computerised fully automatic brinell hardness tester, fie computerized brinell hardness tester, saroj make optical brinell hardness tester and digital computerized fully automatic brinell hardness testers.


Brinell Hardness Testers

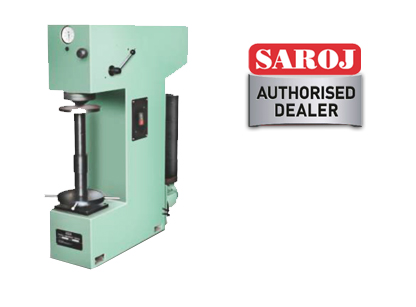

Model - Manual Brinell Hardness Testers

Product Details
Minimum Order Quantity 1 Unit
Parameter NA
Display Type OPTICAL
Model Number B3000(O)
Accuracy AS PER IS
Dimension 10
Automation Grade Semi-automatic
Weight 400 KG
Hardness Scale BHN
Warranty 12 MONTHS
Voltage 440
Power 440
Drive Type NA
Test Range Test Force
Humidity 85
Temperature 50
Diameter NA
Load Capacity 3000 KG
Frequency 50
Packaging Type NIL
Shape NA
I Deal In New Only
Brand SAROJ
Material NA
Drive Motor NA
Indentation Measurement OPTICAL
Machine Height 1200 MM
Main Load 3000 KG
Max Test Height X Throat NA
Size Of Base NA
Surface Treatment NA
Test Scale BHN

Basic machine design & operation similar to B-3000 (H). In addition'Optical Device' with 14 x magnification provided in front of project dia of ball impression on glass screen with a micrometer measuring system with 0.01mm accuracy. The indentor swivels & projects dia of ball impression immediately after unloading operation which avoids additional time for measurement of ball impression.


Brinell Hardness Testers

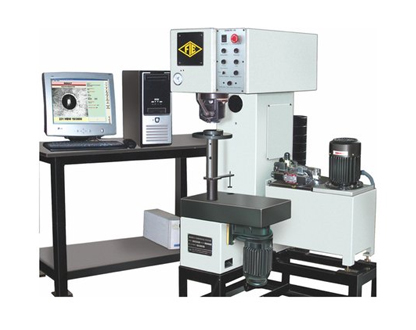

Model - Computerised Fully Automatic Brinell Hardness Testers

Product Details
Automation Grade Automatic
Material SS
Voltage 220 V
Depth of Throat 150 mm
Dimensions 520 x 215 x 700 mm

Computerised Fully Automatic Brinell Hardness Tester,is fabricated from steel plates and is designed for precise loading system. It is fully automatic machine for production testing. Once the job is placed on testing table and press "Cycle Start" button. The job is raised and brought in contact with clamping device. Then identor is swivelled and brought in vertical loading position. The loading operation starts. After preset dwelling timer, unloading operation starts. As soon as load is fully removed, the indentor is swivelled and the image is digitalized using a CCD camera fitted on machine and captured by the PC.

Features:
• Fully automatic machine for production testing.
• Fully computerised (PC based) Brinell Hardness Tester.
• Direct and accurate measurement of Brinell hardness number using "State of Art" image processing technology.
• Wide testing range : From soft metal such as lead up to hardest, like tempered steel.
• High accuracy and repeatability of measurement at all loads.
• Advanced Window XP based software




Brinell Hardness Testers

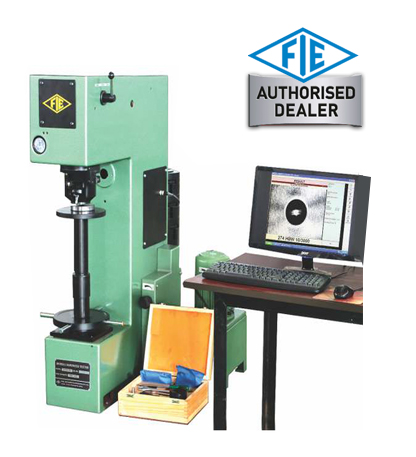

Model - Computerised Brinell Hardness Testers

Product Details
Minimum Order Quantity 1 Number
Automation Grade Automatic
Brand FIE - Authorized Dealer

Appliations :
'FIE' Computerized Brinell hardness tester Model B 300 - PC is a simple and accurate means to produce and automatically measure the indentation to give Brinell hardness number. These testers are suitable for measuring the hardness of precision metallic parts with wide testing range from soft to hard and their accurate results are widely acclaimed. These testers strictly confirms to IS 1500-2, BS:10003-2 and ASTM E-10.

Features
• Fully Computerized (PC Based) Brinell Hardness Testing Machine
• Direct and Accurate Measurement of Brinell Hardness number using "State of the art" image
    processing technology
• Wide testing range : from soft metal up to medium hardness steels
• High accuracy & repeatability of measurement at all loads
• Faster measurement yielding to higher productivity
• Small size of indentation makes it a non destructive testing on finished componets
• Electrical loading & unloading cycle
• Advanced Windows based software
• Inbuilt branded touch screen laptop
• Front panel touch screen display
• Single phase fully electrical machine with no hydraulics


Brinell Hardness Testers

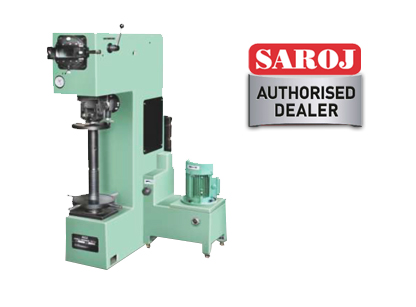

Model - Optical Brinell Hardness Testers - SAROJ

Product Details
Minimum Order Quantity 1 Unit
Automation Grade Automatic
Model Number B3000(O)
Brand SAROJ

As a quality-oriented organization, we are focused to provide our clients excellent quality SAROJ Make Optical Brinell Hardness Tester.


Brinell Hardness Testers

Model - Touch Screen Fully Automatic Computerized Brinell Hardness Tester - B3000 TSFA

Product Details
Test Loads 250 to 3000 in stages of 250kgf.
Maginfication of objectives 4x Measuring Range 1 to 6mm
Maximum Test Height (mm) 380
Scale least count (mm) 0.01
Throat Depth (mm) 200
Machine Dimensions L1025 x W650 X H1800 Approx
Weight 405 Kg. Approx
Power Supply 230V, 50Hz, Single Phase

Appliations :
'FIE' touch screen Brinell hardness tester Model B 3000 - TSFA is a simple and accurate means to produce and automatically measure the indentation to give Brinell hardness number. These testers are suitable for measuring the hardness of precision metallic parts with wide testing range from soft to hard and their accurate results are widely acclaimed. These testers strictly confirms to IS 1500-2, BS:10003-2 and ASTM E-10.

Features :
• Fully Computerized Touch Screen Brinell Hardness Testing Machine
• Accurate Measurement of Brinell Hardness number using "State of the art" image processing technology
• Wide testing range : from soft metal up to hardest
• High accuracy & repeatability of measurement at all loads
• Faster measurement yielding to higher productivity
• Hydraulic loading and unloading cycle
• Advanced Windows based software




Model - Touch Screen Computerized Brinell Hardness Testers - B3000 TS

Features :
• Fully Computerized Touch Screen Brinell Hardness Testing Machine
• Accurate Measurement of Brinell Hardness number using "State of the art" image processing technology
• Wide testing range : from soft metal up to hardest.
• High accuracy & repeatability of measurement at all loads
• Faster measurement yielding to higher productivity
• Small size of indentation makes it a non destructive testing on finished components
• Hydraulic loading and unloading cycle
• Advanced windows based software Inbuilt branded touch screen laptop
• Front panel touch screen display.
