Matrix Testing Machine Services

High Precision Video Measuring Machines

We are Manufacturer, Supplier, Distributor, Trader, Exporter, Importer, Maintenance, AMC Services Provider of Hardness Testers, Brinell Microscope, Poldi Hardness Testers, and our setup is situated in Pune, Maharashtra, India.

high-precision-video-measuring-machines

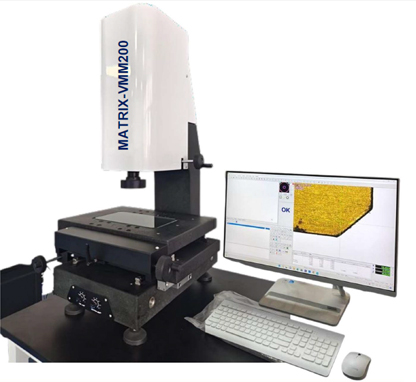

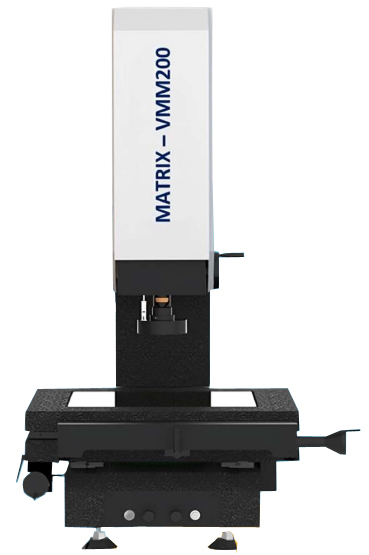

High Precision Video Measuring Machines

Model - MATRIX – VMM200

Features :

  • Ergonomic design
  • Highly accurate measurements
  • Advance illumination system
  • Very robust marble base
  • High image quality
  • High magnification with distortion free image
  • Classic model
  • High precision optics / camera
REQUEST A QUOTE

Technical Specifications:

Model MATRIX-VM200
Travel-X. Y axis(mm) 200*100
Travel-Z axis (mm) 180
Z-axis focal length (mm) 90 (Focus range) 1μm
Resolution 1μm
X, Y-axis accuracy (2.5+L/150)μm; L=measuring length(mm) 360*260
Stage size (mm) 360*260
Glass stage(mm) 260*154
Stage load capacity 15kg
Illumination Contour illumination: LED parallel lamp Surface illumination: LED 3 ring light
Vision system Continuous detent zoom lens 0.7x~4.5x High definition Gigabit colour CCD camera
Dimension L*W*H(mm) 600*550*980
Power Supply 100V-120V/200-240V AC, 50/60HZ
Net weight 140kg
Body Complete Marble Base, Workstage and Column.

high-precision-video-measuring-machines-2

Standard Packing List: Optional Accessories
Main unit 0.5x additional lens
Metrology 2D measuring software 2x additional lens
Encoder interface Metrology Counter
Continuous detent zoom lens 0.7x~4.5x Standard scale
High definition Gigabit color CCD camera Renishaw (U.K.) MCP trigger probe with PC
LED cold Light sources for surface and contour illumination
Calibration gauge
Accuracy report, English user manual

Our Services

  • 12 months warranty
  • Lifetime free software upgrades
  • Lifetime free remote learning by video
REQUEST A QUOTE
